Product details of the mobile stage manufacturers
Product Specification
Audience covered: 30000-100000
Color: Optional
Type: Party Supplies
Frame design: Square
Quick Overview
The design of mobile stage manufacturers from Zhengzhou Sinoswan Tech Co.,Ltd. is an overwhelming success. The value of SINOSWAN's product are shown with strong reliability and excellent practicality. Zhengzhou Sinoswan Tech Co.,Ltd. has full confidence in the quality of mobile stage manufacturers.
Product Information
Compared with other same kind of products in the market, SINOSWAN's mobile stage manufacturers is equipped with the following outstanding advantages.
Product Parameters
| Length | 12240mm | Width | 2350mm |
| Height | 3600mm | ||
| Length and Depth (stage floor) | 11200*7130mm | ||
| Height from Ground | 1300mm | ||
| Design live load | 400kg/㎡ | ||
| Strueture (Stage floor) | Pro Stage Birchen Plywood + Steel | ||
| Length and Depth (roof) | 9000*7110mm | ||
| Height(Roofto Stage Floor) | 4200mm | ||
| Height(Roofto Ground) | 5500mm | ||
| Lighting Truss Number | 7 | ||
| Lighting Bearing Capacity | 200kg per truss | ||
| Total Roof Capacity | 1400kg | ||
| Audience Covered | 4000-6000(People) | ||
| Installation Time | 20mins - 1hour | ||
| Personnel Required | 2-4people | ||
| Wind Resistance (without windwall) | 107km | ||
| Wind Resistance (with windwall) | 86km | ||
| Features | 1. Hydraulie system with Hydraulic locks and manualocking pins to ensure safety. each wing has 3cylinders | ||
| 2.10power sockets + 4front side 4sockets | |||
| 3.22 stage mechanical legs to support the whole stage besafe and steady | |||
Product Display
Efficient, Durable, Portable, Versatile
Portable Power and Precision

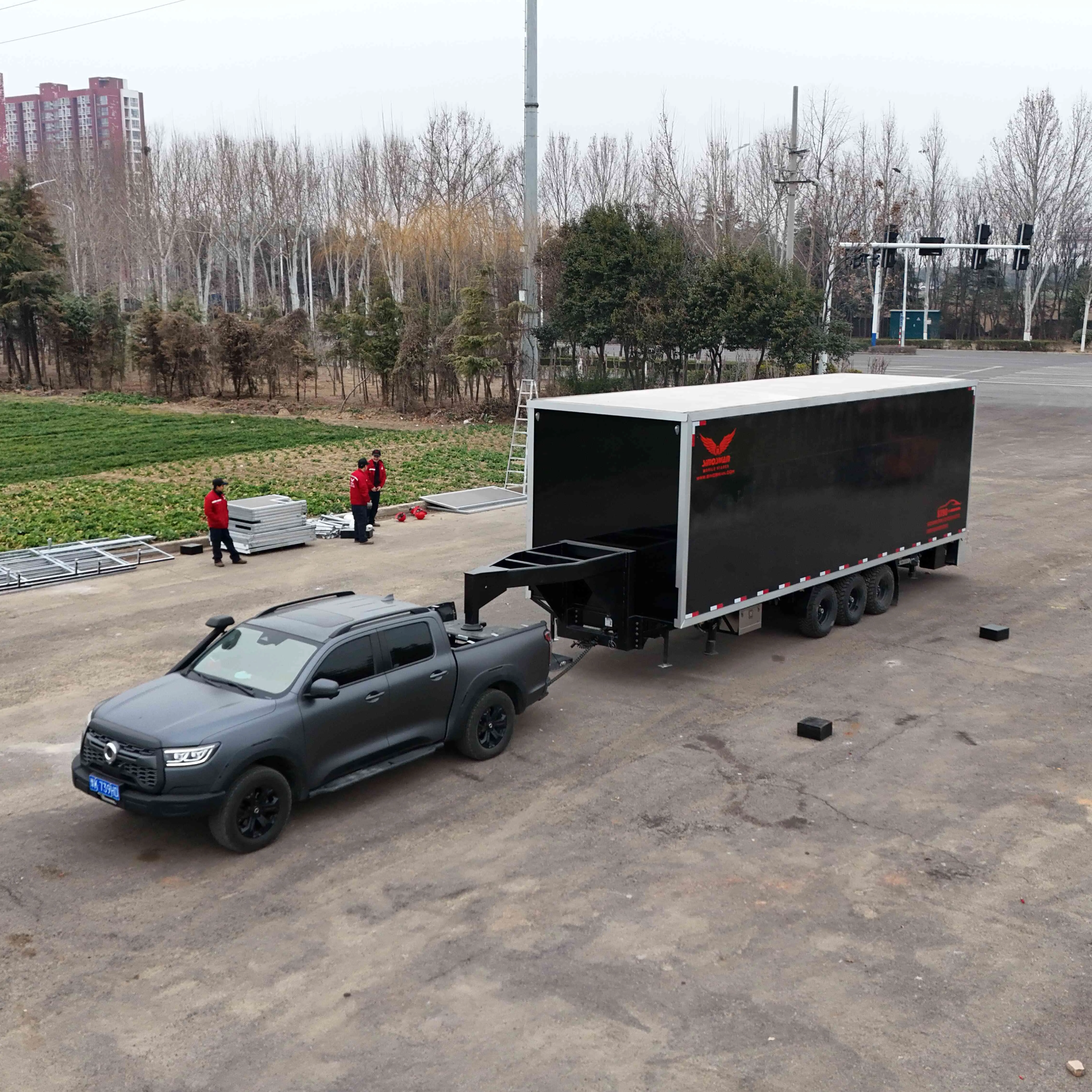

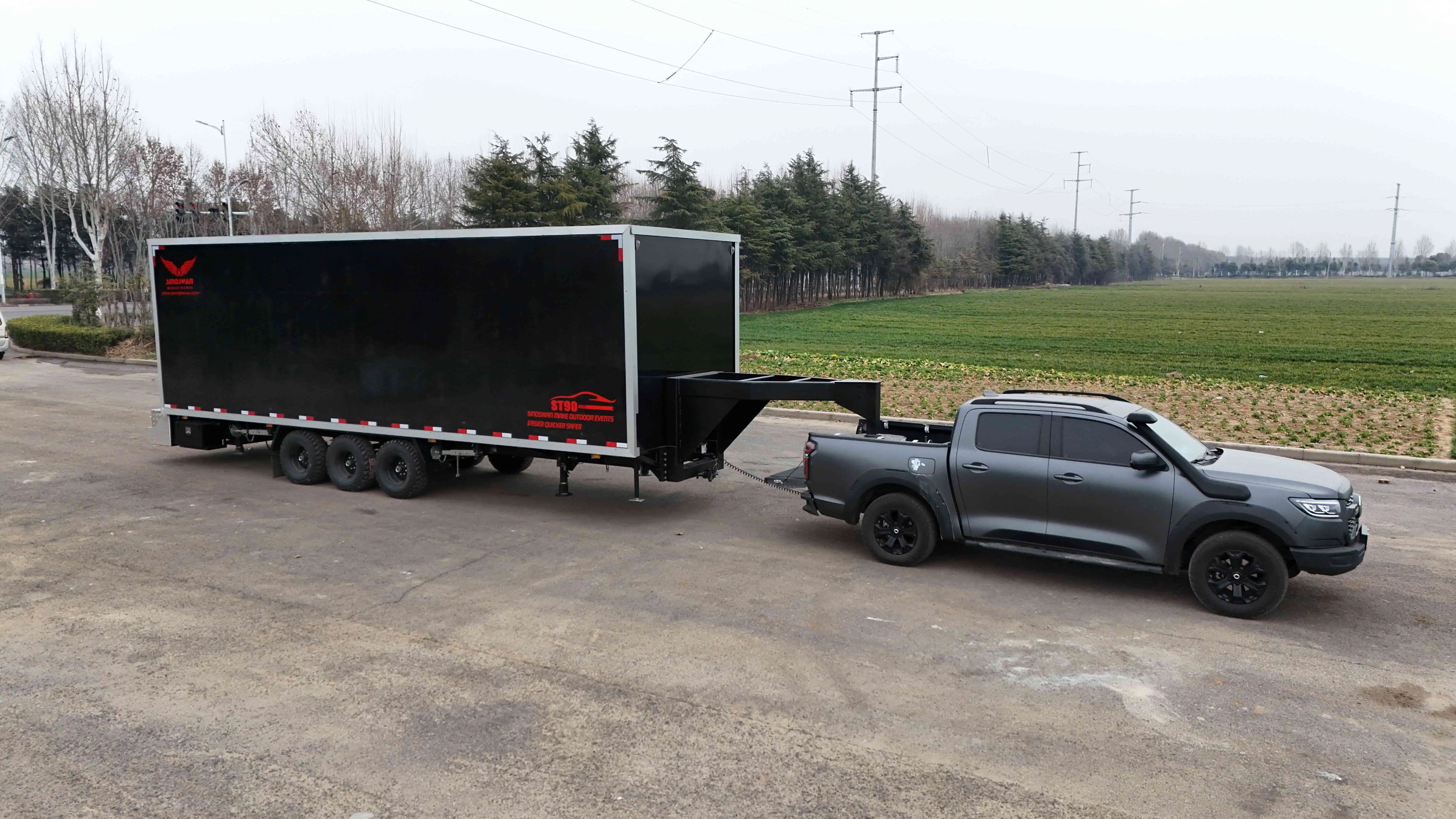

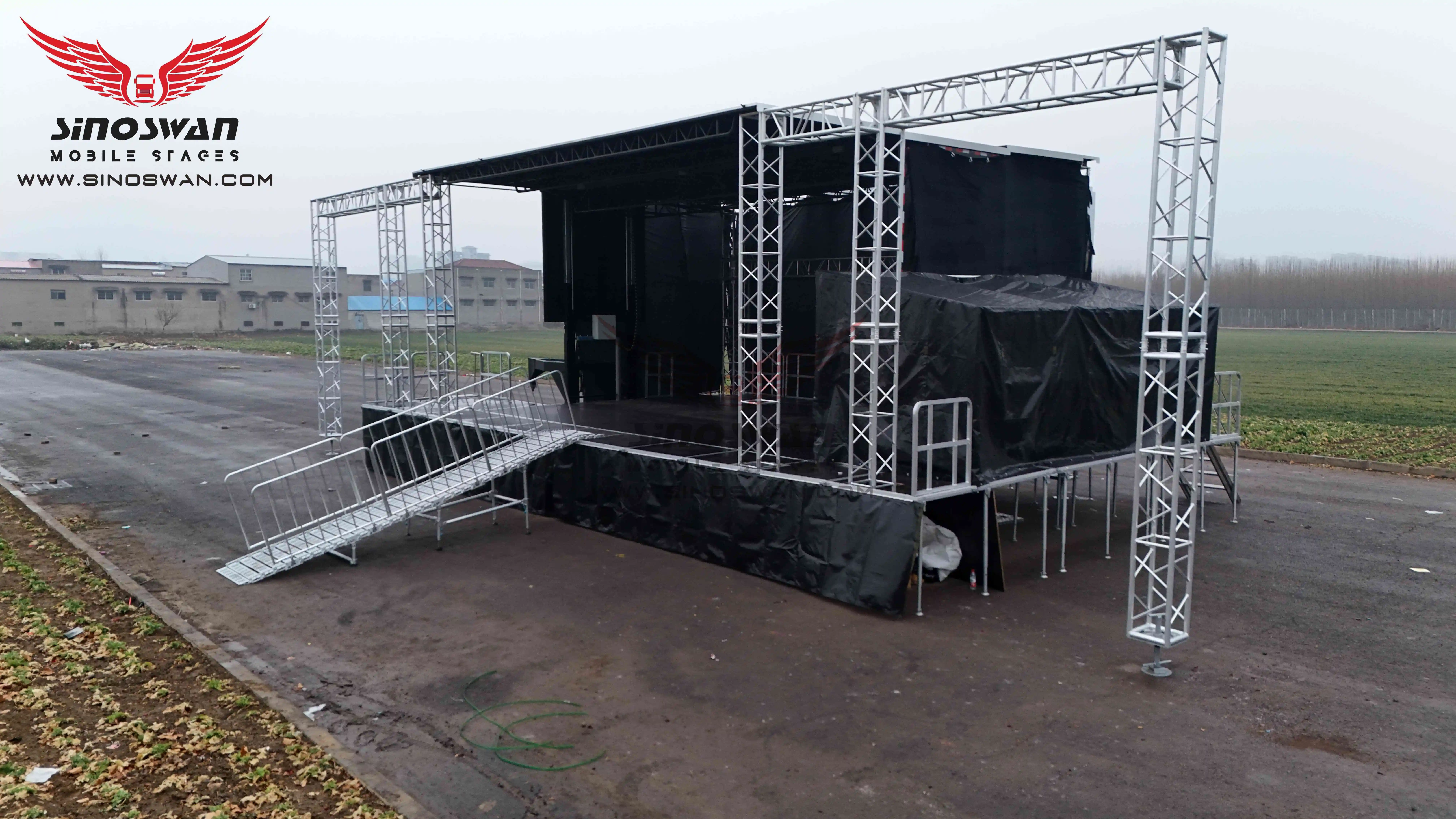

The Aluminum Outdoor Mobile Stage Truss with Hydraulic System from Sinoswan St90pro features a hydraulic system with hydraulic locks and manual locking pins for safety, with each wing equipped with 3 cylinders. Additionally, it boasts 10 power sockets and 4 front side sockets, along with 22 stage mechanical legs for support and stability. This stage is designed for quick and easy installation, with a sturdy structure and a capacity to accommodate up to 4000-6000 audience members, making it ideal for various outdoor events.
◎ Safety
◎ Convenience
◎ Stability
Application Scenario
Material Introduction
Crafted from durable aluminum, the Aluminum Outdoor Mobile Stage Truss with Hydraulic System - Sinoswan St90pro is built to withstand the elements while providing a safe and stable platform for performances. The hydraulic system includes hydraulic locks and manual locking pins for added safety, with three cylinders on each wing. Additionally, this mobile stage features 10 power sockets, 22 mechanical stage legs, and a lighting truss capacity of 200kg per truss, making it a versatile and reliable option for outdoor events.
◎ Durable Aluminum Material Introduction
◎ Hydraulic System Description
◎ Versatile Stage Features
FAQ
Company Information
Zhengzhou Sinoswan Tech Co.,Ltd. is a company that specializes in providing customers with Mobile Stage,Mobile Led Trailer,Roadshow Truck,Mobile Banquet Hall,Mobile Clinic Truck,Mobile Space,OB Van. SINOSWAN intends to be responsible, united, pragmatic and efficient, which is aligned with the corporate value. Customers and services are of great importance to our business. We strive to build an excellent enterprise with a good business reputation and quality services. Our company now has a team of first-rate talents who contribute to the research and development and production of our products. We strive to provide customers with efficient, complete, and flexible solutions based on their needs.
All walks of life are welcomed to visit and negotiate.
