Mobile Stage Mobile Hydraulic Concert Stages Supply
Company Advantages
· Standard manufacturing: the production of SINOSWAN mobile hydraulic concert stages is based on the advanced technology developed by ourselves autonomously and the complete management system and standards.
· Excellent performance and long service life make the product competitive.
· This product is in great demand and we have on hand many enquiries from other countries.
Portable Outdoor Event Solution

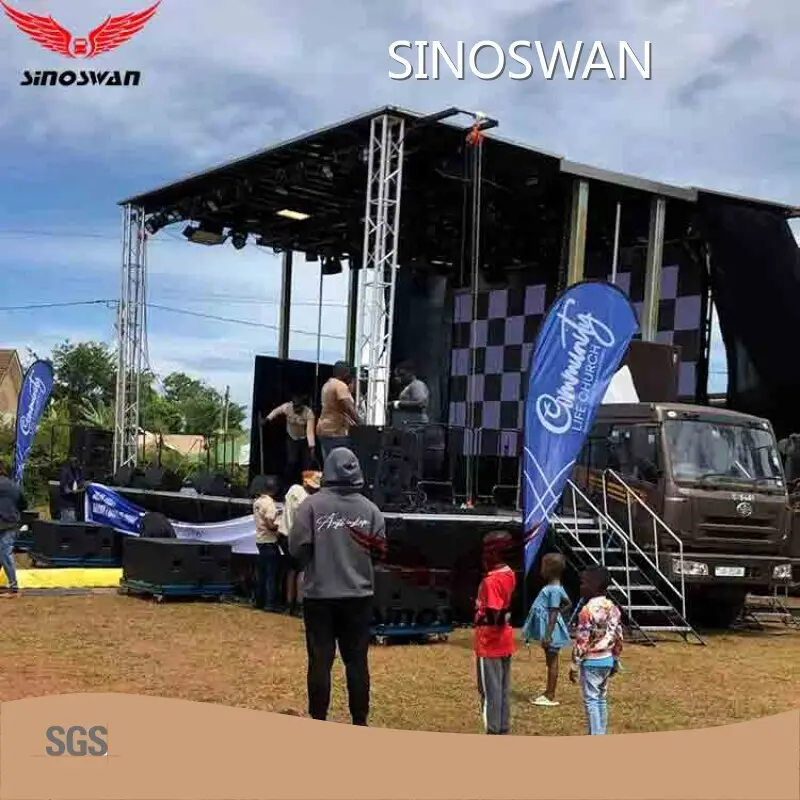

The Mobile Show Stage Truck with Sound System is perfect for outdoor events, offering customizable design options and professional technical support. With easy transport options including bulk carrier, frame boat, and roll-on-roll-off, you can bring the stage directly to your event location. This high-quality stage truck has a sturdy design and a production cycle of 30-45 days, making it a reliable and convenient choice for your next event.
● Versatile Mobile Event Stage
● Tailored Event Truck Solution
● Seamless Delivery Options
● Customizable Event Logistics
Product Parameters
| SS70 MOBILE STAGE TRUCK | ||
| SS70 (STAGE BUILD ON TRUCK CAN GO BY ITSELF) | ||
| Length | 9980mm | 32' 10" |
| Width | 2480mm | 8' 1" |
| Height | 3985mm | 13' 1" |
| Storage Space | 25m³ | 883ft³ |
| Weight | 10700kg | 23590lb |
| STAGE FLOOR | ||
| Length and Depth | 8920 x 7600mm | 29' 26" x 24'93" |
| Length and Depth with Extension Platforms | 10540 x 8800mm | 34'58" x 29'13" |
| Height from Ground | 1370m | 4'6" |
| Design Live Load | 400kg/m² | 882lb/ft² |
| Type of Surface | Pro Stage Plywood | |
| ROOF | ||
| Length and Depth | 7800 x 7675mm | 25'7" x 25'3" |
| Height from Roof to Stage Floor/ Ground | 4700mm/5550mm | 15'42" / 18'2" |
| Maximum Height with Banner | 7050mm | 23'12" |
| Type of Surface | Fiberglass bonded on steel | |
| Lifting Capacity | 2T | 4410lb |
| Load Bearing Capacity | ||
| Rigging Points | 400Kg | 880lb |
| Rigging Bars | 500Kg | 1100lb |
| Trusses-Central Roof(2), Downstage & Upstage | 1500Kg | 3310lb |
| Upstage | ||
| Front Overhang Extensions | 350Kg | 770lb |
| Lateral Overhang Rigging Beams | 350Kg | 770lb |
| Line Array Rigging Beams | 505Kg | 1110lb |
Product Display
Versatile mobile performance solution
Application Scenario
Material Introduction
Constructed with durable materials, the Mobile Show Stage Truck with Sound System is designed to withstand outdoor events. The stage floor is made of Pro Stage Plywood, while the roof features fiberglass bonded on steel for added sturdiness. With lifting and load bearing capacities ranging from 2T to 500Kg, this mobile stage truck is equipped to handle various audiovisual setups for any outdoor event.
◎ Pro Stage Plywood
◎ Fiberglass Bonded Steel
◎ Maximum Live Load Capacity
FAQ
Company Features
· Manufacturing mobile hydraulic concert stages, Zhengzhou Sinoswan Tech Co.,Ltd. has senior R&D team and veteran technicians as a strong support.
· We have experienced technical designers and manufacturing engineers. They contribute a lot to the functionality, performance, as well as visual appeal of our product. We have experienced design professionals. Their expertise lies in concept visualization, product drawings, function analysis, and more. Their involvement in all aspects of product development has enabled the company to exceed every customer's expectations for product performance.
· We have had a stellar record in promoting sustainability. During production, we have made progress in eliminating chemical discharges into waterways and have significantly increased energy efficiency.
Product Comparison
Compared with similar products, our mobile hydraulic concert stages's outstanding advantages are as follows.
