Mobile Stage Semi Trailer Stage for Parades and Public Celebrations Suppliers
Dynamic LED Advertising Solution

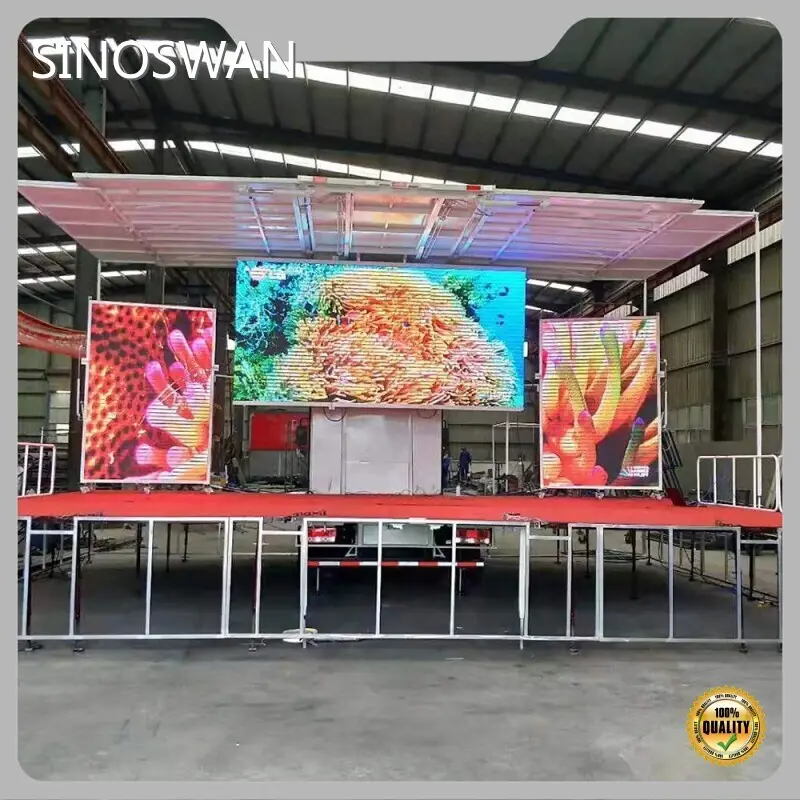

Our Mobile LED Stage Show Truck provides a versatile and easily deployable stage solution for concerts, festivals, political campaigns, and more, with rapid setup in minutes. Featuring a hydraulic system for smooth stage lifting and lowering, and constructed from high-quality, durable materials, it offers a sturdy performance platform. Customize your ideal stage experience with multiple models and accessory options, all available through our one-stop shopping platform with expert design support to tailor the solution to your specific event requirements. This truck boasts a spacious stage equipped with LED screens and impressive load-bearing capacity.
● Portable
● Quick
● Comprehensive
● Versatile
Product Parameters
| SS70 MOBILE STAGE TRUCK | ||
| SS70 (STAGE BUILD ON TRUCK CAN GO BY ITSELF) | ||
| Length | 9980mm | 32' 10" |
| Width | 2480mm | 8' 1" |
| Height | 3985mm | 13' 1" |
| Storage Space | 25m³ | 883ft³ |
| Weight | 10700kg | 23590lb |
| STAGE FLOOR | ||
| Length and Depth | 8920 x 7600mm | 29' 26" x 24'93" |
| Length and Depth with Extension Platforms | 10540 x 8800mm | 34'58" x 29'13" |
| Height from Ground | 1370m | 4'6" |
| Design Live Load | 400kg/m² | 882lb/ft² |
| Type of Surface | Pro Stage Plywood | |
| ROOF | ||
| Length and Depth | 7800 x 7675mm | 25'7" x 25'3" |
| Height from Roof to Stage Floor/ Ground | 4700mm/5550mm | 15'42" / 18'2" |
| Maximum Height with Banner | 7050mm | 23'12" |
| Type of Surface | Fiberglass bonded on steel | |
| Lifting Capacity | 2T | 4410lb |
| Load Bearing Capacity | ||
| Rigging Points | 400Kg | 880lb |
| Rigging Bars | 500Kg | 1100lb |
| Trusses-Central Roof(2), Downstage & Upstage | 1500Kg | 3310lb |
| Upstage | ||
| Front Overhang Extensions | 350Kg | 770lb |
| Lateral Overhang Rigging Beams | 350Kg | 770lb |
| Line Array Rigging Beams | 505Kg | 1110lb |
Product Display
Dynamic, Versatile, Engaging, Impactful
Application Scenario
Material Introduction
The Mobile LED Stage Show Truck is constructed with durable materials such as Pro Stage Plywood for the stage floor and fiberglass bonded on steel for the roof, ensuring stability and safety during events. The truck's design live load capacity of 400kg/m² and lifting capacity of 2T allows for versatile set-up options for various events, from concerts to political activities. With multiple model choices available, customers can choose the product that best suits their needs, making it a versatile and reliable solution for any event.
◎ High-quality materials
◎ Durable construction
◎ Reliable performance
FAQ
Company Advantages
· The raw material of SINOSWAN semi trailer stage goes through a rigorous selection procedure.
· This product is durable and well received by users.
· Attaching the importance of quality assurance will help semi trailer stage to be more popular in this market.
Company Features
· Zhengzhou Sinoswan Tech Co.,Ltd. is a prestigious enterprise with market recognition. We provide unique and professional customized solutions of semi trailer stage.
· Our engineering team works closely with our customers. They come from a diverse background, creating innovative product solutions during the design phase and throughout the entire manufacturing process.
· Zhengzhou Sinoswan Tech Co.,Ltd. is committed to developing SINOSWAN into world-renowned brands. Get quote!
Application of the Product
semi trailer stage of SINOSWAN can play a role in various industries.
We strive to provide customers with efficient, complete, and flexible solutions based on their needs.
