Mobile LED Stage Show Truck - Hydraulic Video Advertising
The Mobile LED Stage Show Truck is a versatile vehicle equipped with a hydraulic system and LED screens for video advertising. It can be used for outdoor events, concerts, festivals, product launches, and promotional campaigns. With its ability to display high-quality video content, the truck is an impactful marketing tool that can attract attention and engage audiences in various settings.
Dynamic LED Advertising Solution
Our Mobile LED Stage Show Truck provides a versatile and easily deployable stage solution for concerts, festivals, political campaigns, and more, with rapid setup in minutes. Featuring a hydraulic system for smooth stage lifting and lowering, and constructed from high-quality, durable materials, it offers a sturdy performance platform. Customize your ideal stage experience with multiple models and accessory options, all available through our one-stop shopping platform with expert design support to tailor the solution to your specific event requirements. This truck boasts a spacious stage equipped with LED screens and impressive load-bearing capacity.
● Portable
● Quick
● Comprehensive
● Versatile
Product Parameters
| SS70 MOBILE STAGE TRUCK | ||
| SS70 (STAGE BUILD ON TRUCK CAN GO BY ITSELF) | ||
| Length | 9980mm | 32' 10" |
| Width | 2480mm | 8' 1" |
| Height | 3985mm | 13' 1" |
| Storage Space | 25m³ | 883ft³ |
| Weight | 10700kg | 23590lb |
| STAGE FLOOR | ||
| Length and Depth | 8920 x 7600mm | 29' 26" x 24'93" |
| Length and Depth with Extension Platforms | 10540 x 8800mm | 34'58" x 29'13" |
| Height from Ground | 1370m | 4'6" |
| Design Live Load | 400kg/m² | 882lb/ft² |
| Type of Surface | Pro Stage Plywood | |
| ROOF | ||
| Length and Depth | 7800 x 7675mm | 25'7" x 25'3" |
| Height from Roof to Stage Floor/ Ground | 4700mm/5550mm | 15'42" / 18'2" |
| Maximum Height with Banner | 7050mm | 23'12" |
| Type of Surface | Fiberglass bonded on steel | |
| Lifting Capacity | 2T | 4410lb |
| Load Bearing Capacity | ||
| Rigging Points | 400Kg | 880lb |
| Rigging Bars | 500Kg | 1100lb |
| Trusses-Central Roof(2), Downstage & Upstage | 1500Kg | 3310lb |
| Upstage | ||
| Front Overhang Extensions | 350Kg | 770lb |
| Lateral Overhang Rigging Beams | 350Kg | 770lb |
| Line Array Rigging Beams | 505Kg | 1110lb |

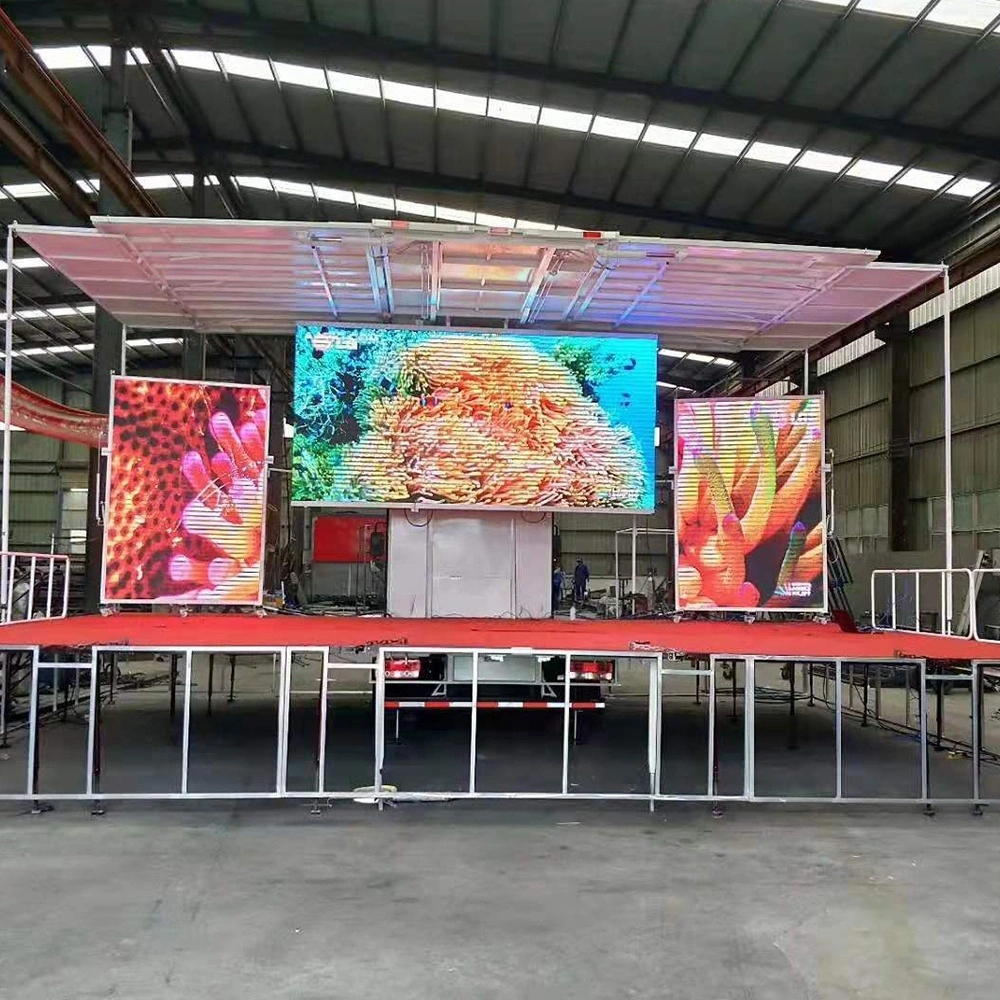

Product Display
Dynamic, Versatile, Engaging, Impactful
Application Scenario
Material Introduction
The Mobile LED Stage Show Truck is constructed with durable materials such as Pro Stage Plywood for the stage floor and fiberglass bonded on steel for the roof, ensuring stability and safety during events. The truck's design live load capacity of 400kg/m² and lifting capacity of 2T allows for versatile set-up options for various events, from concerts to political activities. With multiple model choices available, customers can choose the product that best suits their needs, making it a versatile and reliable solution for any event.
◎ High-quality materials
◎ Durable construction
◎ Reliable performance
