Product details of the mobile stage setup
Product Specification
Keyword: Mobile Led Advertising Car
Fuel Tank Capacity: 300-400L
Capacity (Load): 21 - 30T
Window: Automatic
Weight: 10700 kg
Product Description
Zhengzhou Sinoswan Tech Co.,Ltd. adopts appropriate material to align with functions of mobile stage setup. In terms of quality inspection, our factory is equipped with advanced equipment. The product is popular in the market, meeting the requirements of customers.
Dynamic LED Advertising Solution

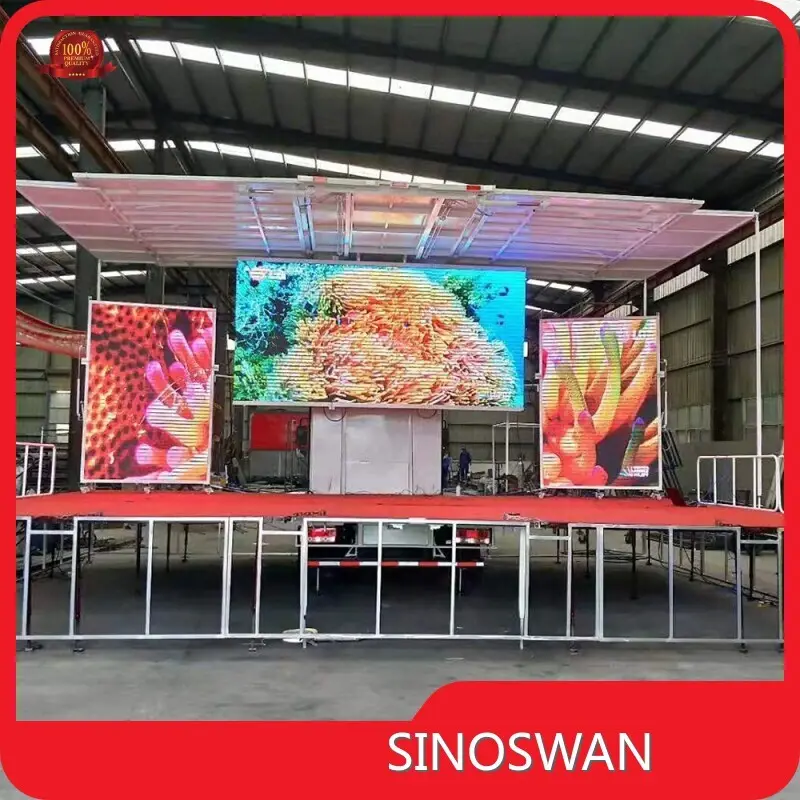

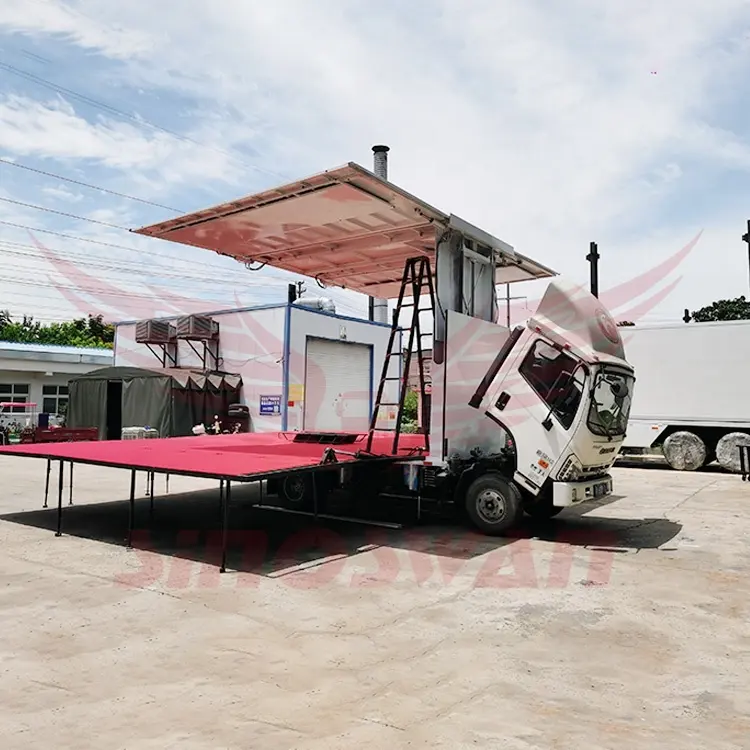

Our Mobile LED Stage Show Truck provides a versatile and easily deployable stage solution for concerts, festivals, political campaigns, and more, with rapid setup in minutes. Featuring a hydraulic system for smooth stage lifting and lowering, and constructed from high-quality, durable materials, it offers a sturdy performance platform. Customize your ideal stage experience with multiple models and accessory options, all available through our one-stop shopping platform with expert design support to tailor the solution to your specific event requirements. This truck boasts a spacious stage equipped with LED screens and impressive load-bearing capacity.
● Portable
● Quick
● Comprehensive
● Versatile
Product Parameters
| SS70 MOBILE STAGE TRUCK | ||
| SS70 (STAGE BUILD ON TRUCK CAN GO BY ITSELF) | ||
| Length | 9980mm | 32' 10" |
| Width | 2480mm | 8' 1" |
| Height | 3985mm | 13' 1" |
| Storage Space | 25m³ | 883ft³ |
| Weight | 10700kg | 23590lb |
| STAGE FLOOR | ||
| Length and Depth | 8920 x 7600mm | 29' 26" x 24'93" |
| Length and Depth with Extension Platforms | 10540 x 8800mm | 34'58" x 29'13" |
| Height from Ground | 1370m | 4'6" |
| Design Live Load | 400kg/m² | 882lb/ft² |
| Type of Surface | Pro Stage Plywood | |
| ROOF | ||
| Length and Depth | 7800 x 7675mm | 25'7" x 25'3" |
| Height from Roof to Stage Floor/ Ground | 4700mm/5550mm | 15'42" / 18'2" |
| Maximum Height with Banner | 7050mm | 23'12" |
| Type of Surface | Fiberglass bonded on steel | |
| Lifting Capacity | 2T | 4410lb |
| Load Bearing Capacity | ||
| Rigging Points | 400Kg | 880lb |
| Rigging Bars | 500Kg | 1100lb |
| Trusses-Central Roof(2), Downstage & Upstage | 1500Kg | 3310lb |
| Upstage | ||
| Front Overhang Extensions | 350Kg | 770lb |
| Lateral Overhang Rigging Beams | 350Kg | 770lb |
| Line Array Rigging Beams | 505Kg | 1110lb |
Product Display
Dynamic, Versatile, Engaging, Impactful
Application Scenario
Material Introduction
The Mobile LED Stage Show Truck is constructed with durable materials such as Pro Stage Plywood for the stage floor and fiberglass bonded on steel for the roof, ensuring stability and safety during events. The truck's design live load capacity of 400kg/m² and lifting capacity of 2T allows for versatile set-up options for various events, from concerts to political activities. With multiple model choices available, customers can choose the product that best suits their needs, making it a versatile and reliable solution for any event.
◎ High-quality materials
◎ Durable construction
◎ Reliable performance
FAQ
Company Advantage
• Guided by the customer-oriented view, our company wholeheartedly serves the customer and provides them with satisfactory products, so as to make mutual benefits.
• Focusing on the production and development of products, our company has formed an excellent management team, an experienced operation team and a technical team in the industry, which provides a strong foundation for our development.
• SINOSWAN continues to expand the market share in several countries.
• SINOSWAN is located in a position where multi traffic lines join up. Therefore, the superior transportation makes contribution to the efficient delivery of various products.
We can provide you with high-quality products and look forward to your cooperation with us.
