Product details of the elevated stage
Product Specification
Fuel Type: Petrol / Gasoline
Type: Party Supplies
Air Conditioner: Automatic
Product Introduction
SINOSWAN elevated stage is designed by our designers who are actively developing new products based on the spirit of innovation. The quality of the product has been greatly improved since our workers become more and more proficient in the production. Zhengzhou Sinoswan Tech Co.,Ltd. is professional, creative and a breeze to work with.
Portable Outdoor Event Solution

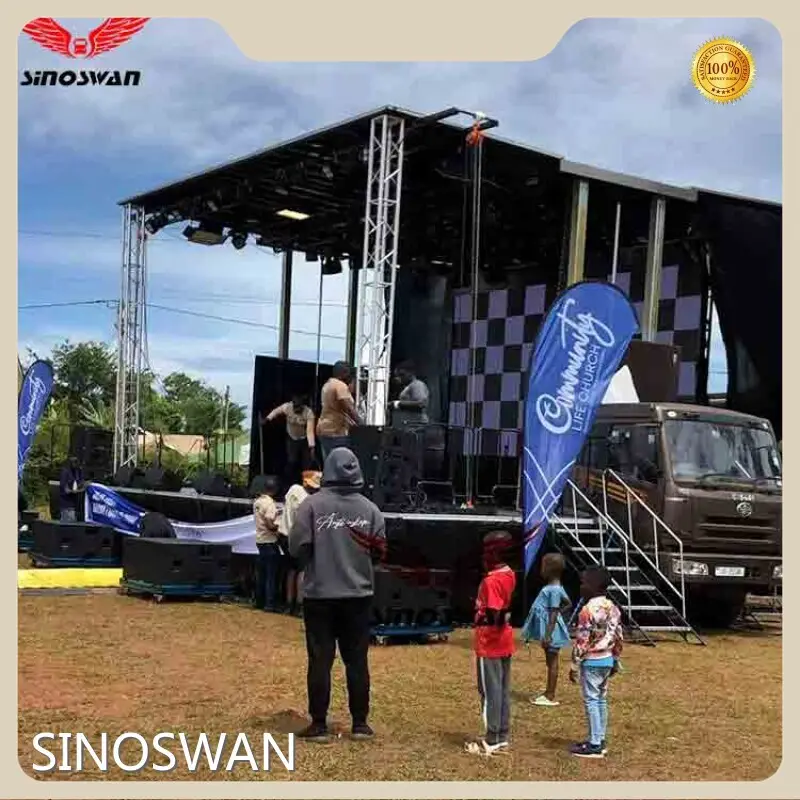

The Mobile Show Stage Truck with Sound System is perfect for outdoor events, offering customizable design options and professional technical support. With easy transport options including bulk carrier, frame boat, and roll-on-roll-off, you can bring the stage directly to your event location. This high-quality stage truck has a sturdy design and a production cycle of 30-45 days, making it a reliable and convenient choice for your next event.
● Versatile Mobile Event Stage
● Tailored Event Truck Solution
● Seamless Delivery Options
● Customizable Event Logistics
Product Parameters
| SS70 MOBILE STAGE TRUCK | ||
| SS70 (STAGE BUILD ON TRUCK CAN GO BY ITSELF) | ||
| Length | 9980mm | 32' 10" |
| Width | 2480mm | 8' 1" |
| Height | 3985mm | 13' 1" |
| Storage Space | 25m³ | 883ft³ |
| Weight | 10700kg | 23590lb |
| STAGE FLOOR | ||
| Length and Depth | 8920 x 7600mm | 29' 26" x 24'93" |
| Length and Depth with Extension Platforms | 10540 x 8800mm | 34'58" x 29'13" |
| Height from Ground | 1370m | 4'6" |
| Design Live Load | 400kg/m² | 882lb/ft² |
| Type of Surface | Pro Stage Plywood | |
| ROOF | ||
| Length and Depth | 7800 x 7675mm | 25'7" x 25'3" |
| Height from Roof to Stage Floor/ Ground | 4700mm/5550mm | 15'42" / 18'2" |
| Maximum Height with Banner | 7050mm | 23'12" |
| Type of Surface | Fiberglass bonded on steel | |
| Lifting Capacity | 2T | 4410lb |
| Load Bearing Capacity | ||
| Rigging Points | 400Kg | 880lb |
| Rigging Bars | 500Kg | 1100lb |
| Trusses-Central Roof(2), Downstage & Upstage | 1500Kg | 3310lb |
| Upstage | ||
| Front Overhang Extensions | 350Kg | 770lb |
| Lateral Overhang Rigging Beams | 350Kg | 770lb |
| Line Array Rigging Beams | 505Kg | 1110lb |
Product Display
Versatile mobile performance solution
Application Scenario
Material Introduction
Constructed with durable materials, the Mobile Show Stage Truck with Sound System is designed to withstand outdoor events. The stage floor is made of Pro Stage Plywood, while the roof features fiberglass bonded on steel for added sturdiness. With lifting and load bearing capacities ranging from 2T to 500Kg, this mobile stage truck is equipped to handle various audiovisual setups for any outdoor event.
◎ Pro Stage Plywood
◎ Fiberglass Bonded Steel
◎ Maximum Live Load Capacity
FAQ
Company Advantage
• We have established a smooth international market sales channel. And our products are mainly sold to some countries and regions in Europe, America and Australia.
• SINOSWAN was founded in After years of rapid development, our company's comprehensive strength has been greatly improved, and we currently have a high rank in the industry.
• Our company recruits talented people broadly to form a high-quality and highly educated talent team. Our members have high professional level and rich industry experience.
• Our company wholeheartedly provides quality services for customers at home and abroad, so as to achieve mutual benefit and win-win results.
Do not hesitate to contact us if you are interested in ourMobile Stage,Mobile Led Trailer,Roadshow Truck,Mobile Banquet Hall,Mobile Clinic Truck,Mobile Space,OB Van.
