Ultimate Outdoor Event Solution
This versatile and convenient stage is perfect for concerts, festivals, political activities, and more, offering quick set-up and a strong stage floor bearing capacity to handle various event requirements. With its spacious stage floor, impressive live load capacity, and adaptable lifting height, this truck provides a functional and effective space for performances and presentations. Built for durability, it features a robust stage floor and a fiberglass-bonded-on-steel roof, ensuring a safe and reliable platform. Choose from multiple models and enjoy full-service support, including a free 3D design, making the Mobile Airstream Style Stage Truck the top choice for all your event needs.
● Versatile
● Customizable
● High-Quality
● Seamless Experience
Product Parameters
| SS50 MOBILE STAGE TRUCK | ||
| TRUCK (STAGE BUILD ON TRUCK CAN GO BY ITSELF) | ||
| Length | 7000mm | 22'11'' |
| Width | 2450mm | 8' |
| Height | 3370mm | 11' |
| Storage Space | 12.5m² | 440ft² |
| Weight | 6390kg | 14090lb |
| STAGE FLOOR | ||
| Length and Depth | 7150 x 8150mm | 23' 5' x 26' 9'' |
| Length and Depth with Extension Platforms | 10000 x 8000mm | 32' 8'' x 26' 42'' |
| Height from Ground | 840mm | 2'9'' |
| Design Live Load | 400kg/m | 882lb/ft² |
| Type of Surface | Pro Stage Plywood | |
| ROOF | ||
| Length and Depth | 5200 x 7525mm | 17'1'' x 24'8'' |
| Height from Roof to Stage Floor/ Ground | 4000mm/5060mm | 13'12''/16'6'' |
| Maximum Height with Banner | 6560mm | 21'52'' |
| Type of Surface | Fiberglass bonded on steel | |
| Lifting Capacity | 1.5T | 3310lb |
| Load Bearing Capacity | ||
| Rigging Points | 260Kg | 570lb |
| Rigging Bars | 260Kg | 570lb |
| Trusses-Central Roof(2), Downstage & Upstage | 1000Kg | 2200lb |
| Front Overhang Extensions | ||
| Lateral Overhang Rigging Beams | 300Kg | 660lb |
| Line Array Rigging Beams | 300Kg | 660lb |
| 240Kg | 530lb | |
| ROOF | ||
| Length and Depth | 5200 x 7525mm | 17'1'' x 24'8'' |
| Height from Roof to Stage Floor/ Ground | 4000mm/5060mm | 13'12''/16'6'' |
| Maximum Height with Banner | 6560mm | 21'52'' |
| Type of Surface | Fiberglass bonded on steel | |
| Lifting Capacity | 1.5T | 3310lb |
| Load Bearing Capacity | ||
| Rigging Points | 260Kg | 570lb |
| Rigging Bars | 260Kg | 570lb |
| Trusses-Central Roof(2), Downstage & Upstage | 1000Kg | 2200lb |
| Front Overhang Extensions | ||
| Lateral Overhang Rigging Beams | 300Kg | 660lb |
| Line Array Rigging Beams | 300Kg | 660lb |
| 240Kg | 530lb | |
Product Display
Product Comparison
| SS40 | SS40N | SS50 | SS70 | SS90 | |
| Min.Set-up Time | 0:20 | 0:20 | 0:20 | 0:30 | 0:30 |
| Manpower | 2 | 2 | 2 | 2 | 2 |
| Stage Floor Bearing | 400kg/m² | 400kg/m² | 400kg/m² | 400kg/m² | 400kg/m² |
| Foof Load Bearing | 1500KG | 1500KG | 1500KG | 2000KG | 2500KG |
| Floor Area | 8m×6m 26'24"×19'68" | 3.9m×3.55m 12'10"×11'8" | 8.15m×7.15m 23'5"×26'9'' | 8.92m×7.6m 29'26''×24'93" | 9m×8.72m 29'5"×28'6" |
| Lifting Height | 3.35m | - | 4m | 4.7m | 4.7m |
| 10'99" | 13'12" | 15'42" | 15'42" | ||
| Total Height | 4.85m | - | 5.06m | 5.55m | 5.99m |
| 15'91" | 16'6" | 18'2" | 19'65" | ||
| Audience Covered | 500-1000P | 100-500P | 500-2000P | 2000-5000P | 5000-10000P |
Versatile, eye-catching, mobile stage

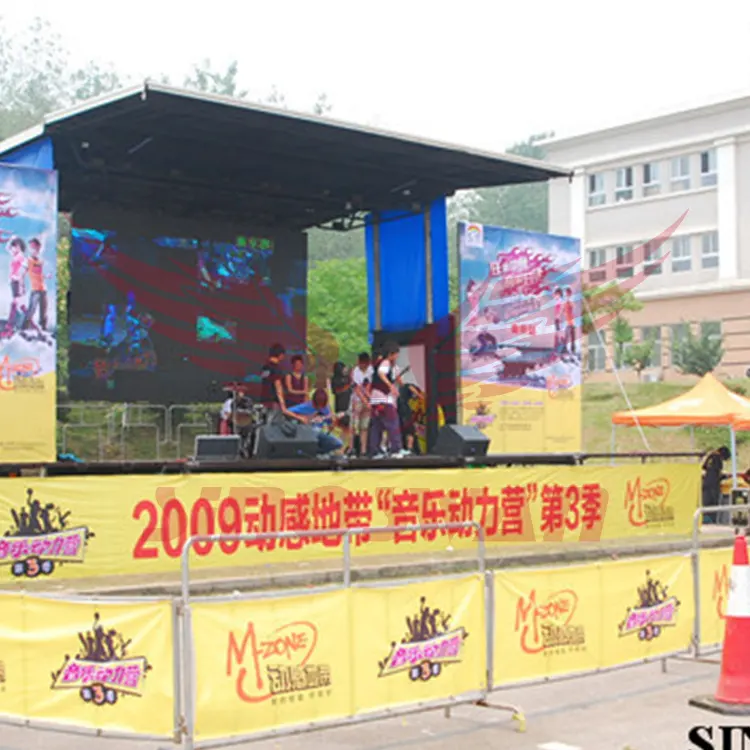

Application Scenario

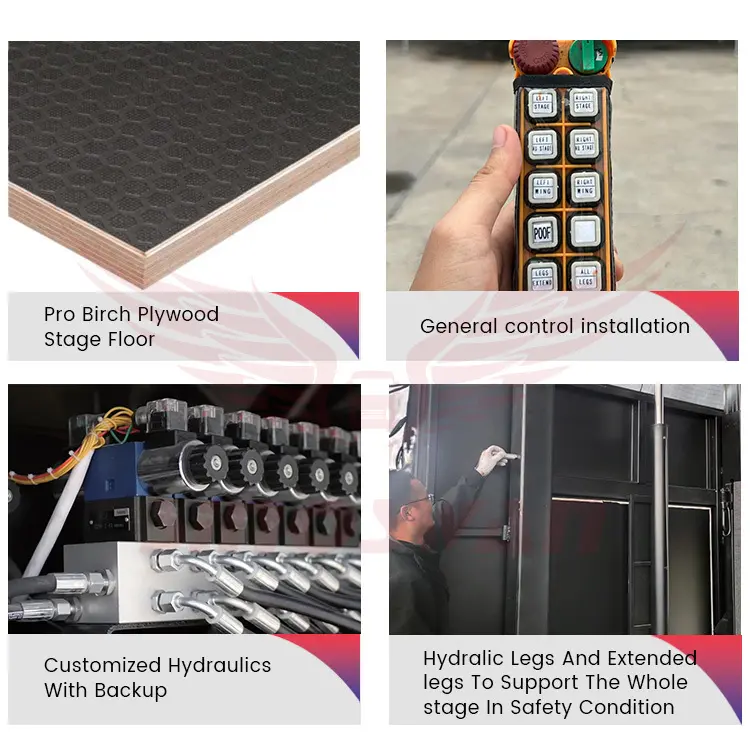

Material Introduction
The Mobile Airstream Style Stage Truck for Outdoor Events is constructed with top-quality materials such as Pro Stage Plywood for the floor and fiberglass bonded on steel for the roof. The stage floor has a design live load of 400kg/m², ensuring a sturdy platform for performances. With a lifting capacity of 1.5T and a load-bearing capacity of up to 260kg, this stage truck is equipped to handle various production needs for outdoor events.
◎ Stage Floor
◎ Roof
◎ Lifting Capacity
FAQ
Company Advantages
· SINOSWAN mobile stage combines high performance materials with trendy and innovative design.
· The product has passed through the extremely harsh quality control and inspection on a basis of quality control plan. This plan is strictly carried out to ensure the high quality of the product.
· Zhengzhou Sinoswan Tech Co.,Ltd. provides world-wide intimate service.
Company Features
· As a responsive and flexible manufacturing company, Zhengzhou Sinoswan Tech Co.,Ltd. has established a solid reputation for designing and providing mobile stage
· Our company has teams of experienced designing and manufacturing professionals. They have developed a strong understanding of customers' needs and built expertise able to accelerate customers' success.
· Customer satisfaction is the highest goal of Zhengzhou Sinoswan Tech Co.,Ltd.. Contact!
Application of the Product
Our mobile stage is widely used in various scenarios.
With a focus on customers, SINOSWAN analyzes problems from the perspective of customers. And we provide customers with comprehensive, professional and excellent solutions.
